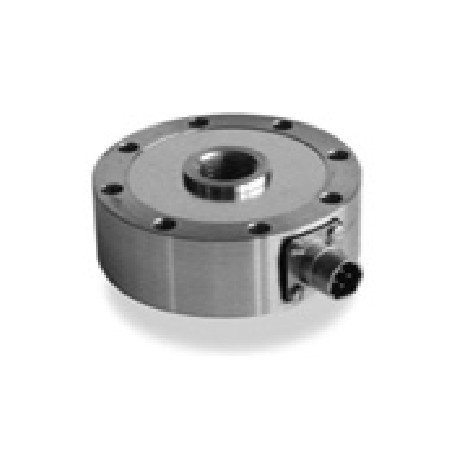

The rugged FN3050 load cell is highly suited for process industry and test bench applications. Dimensions are identical in standard ranges from 0-100 N to 0-20000 N so during testing the sensor can be interchanged for another of a different range without mechanical modifications. The sensor design minimizes transverse effects. For high-level output a model with integrated amplifier is available as are numerous other options.

        With a long standing experience as a designer and manufacturer of sensors, TE CONNECTIVITY often works with customers to design or customize sensors for specific uses and testing environments.

        To meet your needs we also offer extensive turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.

        On request, Instruction documents can be provided to ease the selection and use of our sensors and provide helpful tips.

封        裝：餅狀

量        程：100～1000KN（20～200KLbf）
非  線  性：<±0.1%FS
輸        出：15～20mV（4V；±5V可選）
工作模式：拉力和壓力
工作溫度：-40～150℃
特        點：高穩定性，尺寸一樣，可選放大輸出
典型應用：靜態疲勞測試，實驗室和研究，機器人
