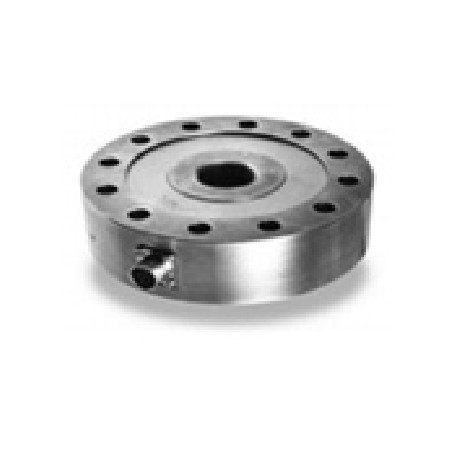

The FN3000 measures tension and compression in standard ranges from 0-10 kN to 0-1000 kN The mechanical design and gauge placement minimizes transverse effects. Depending on the range, the FN3000 is constructed in aluminium alloy or stainless steel and is available with numerous options. It is suitable for test bench applications and used in many hostile environments and can be customized for increased protection.

        With a long standing experience as a designer and manufacturer of sensors, TE CONNECTIVITY often works with customers to design or customize sensors for specific uses and testing environments.

        To meet your needs we also offer extensive turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.

        On request, Instruction documents can be provided to ease the selection and use of our sensors and provide helpful tips.

封        裝：餅狀

量        程：100～1000KN（20～200KLbf）
非  線  性：<±0.1%FS
輸        出：15～20mV（4V；±5V可選）
工作模式：拉力和壓力
工作溫度：-40～150℃
特        點：高穩定性，可選放大輸出
典型應用：靜態疲勞測試，實驗室和研究，機器人
