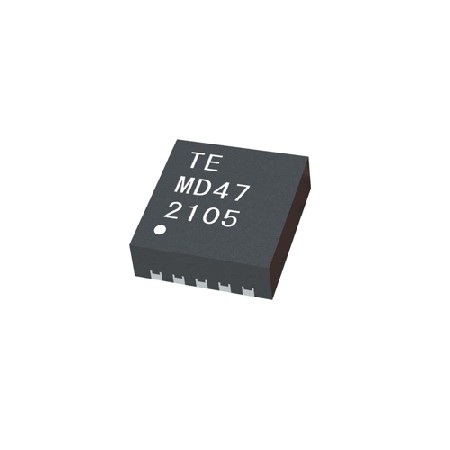

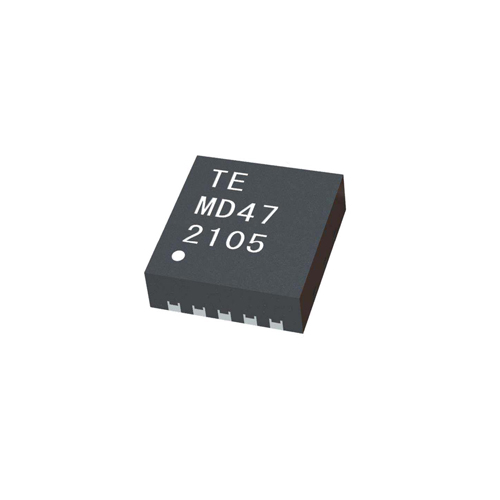

TE's MD47 digital sensor combines the sensitivity and precision of our MR sensor technology with our own advanced digital signalprocessing to create devices with unparalleled performance.

        The easy-to-use digital interface enables precise magnetic sensing with shorter development cycles than ever. The sensor component can be used for non-contact position sensing or as a simple magnet switch with an adjustable, temperature-independent switch point over a wide field range.

        The MD47 combines a unipolar MR sensing element with easy-to-use digital signal processing. The digital output provides magnetic field data as well as a calibration interface. The instrument is factory calibrated for temperature, and calibration coefficients are stored in internal non-volatile memory. All commands, data,and coefficients are contained in an elegant data structure that allows rapid commissioning with minimum firmware.

技術指標：

類        型：磁性線性位移傳感器

磁  極  距：6mm

分  辨  率：24bit

輸       出：SPI

供電電源：1.6~3.6V

電氣連接：焊盤

工作溫度：-45℃～125℃

特       點：高靈敏度，采樣快速，可編程偏移和增益補償

典型應用：非接觸式位置檢測，汽車，小行程氣動氣缸，工業
